Description

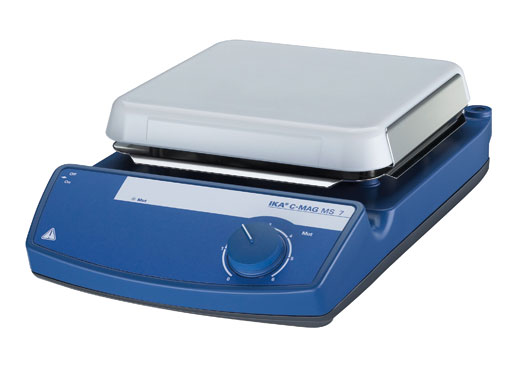

C-MAG MS 7
Magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Elevated control panel for protection against leaking liquids
- Speed range: 100 – 1500 rpm
Technical Data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Motor rating output | 1.5 W |
| Direction of rotation | left |
| Speed control | scale 0 – 6 |
| Speed range | 100 – 1500 rpm |
| Stirring bar length max. | 80 mm |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 180 x 180 mm |
| Dimensions (W x H x D) | 220 x 105 x 330 mm |
| Weight | 5 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 / 120 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 30 W |
