Description

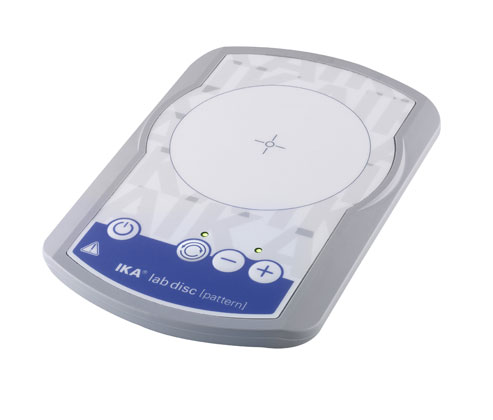

Lab disc white
Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.
- High IP protection class (IP 65)
- Set-up plate and casing made from chemically resistant materials
- Slip-proof, safe stand
- Max. stirring quantity (H2O): 800 ml
- Speed range: 15 – 1500 rpm
Technical Data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 0.8 l |
| Motor rating output | 3 W |
| Speed range | 15 – 1500 rpm |
| Stirring bar length max. | 25 mm |
| Set-up plate material | polyester |
| Set-up plate dimensions | Ø 100 mm |
| Dimensions (W x H x D) | 117 x 12 x 180 mm |
| Weight | 0.3 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 65 |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 5 W |
