Description

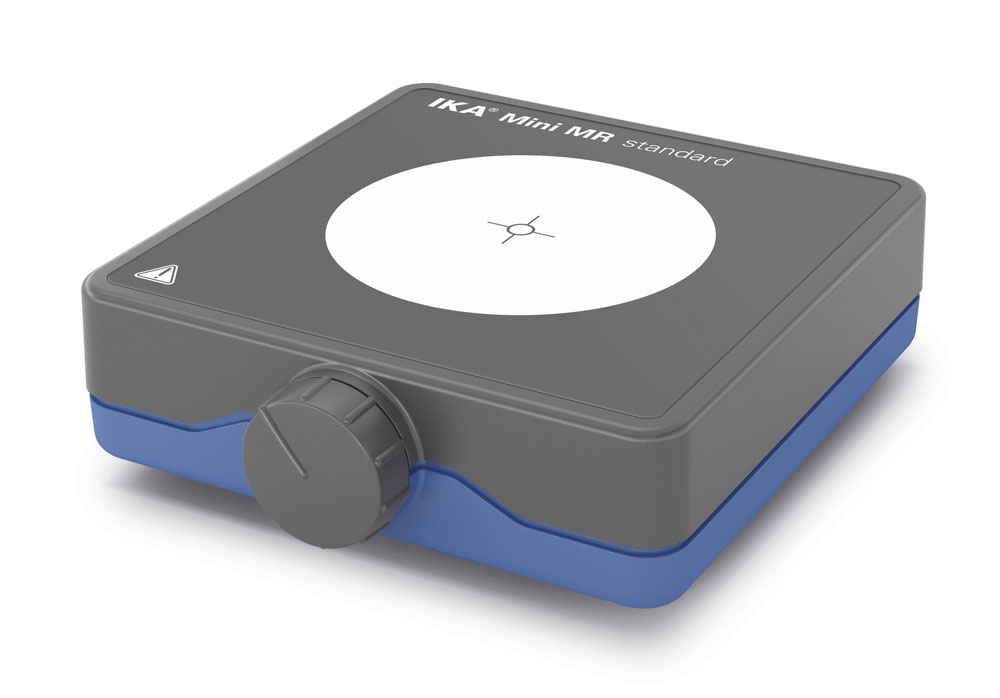

Mini MR standard
Small magnetic stirerr without heating.
- For stirring quantities up to 1.000 ml (H2O)
- Infinitely variable speed from 0 – 2.500 rpm
- White set-up plate suitable for observing color reactions
Technical Data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 1 l |
| Motor rating output | 2 W |
| Direction of rotation | right |
| Speed control | Turning knob |
| Speed range | 0 – 2500 rpm |
| Stirring bar length | 20 – 40 mm |
| Set-up plate material | polyester |
| Set-up plate dimensions | 115 x 115 mm |
| Dimensions (W x H x D) | 115 x 37 x 129 mm |
| Weight | 0.25 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 3 W |
| DC Voltage | 12 V= |
| Current consumption | 300 mA |
