Description

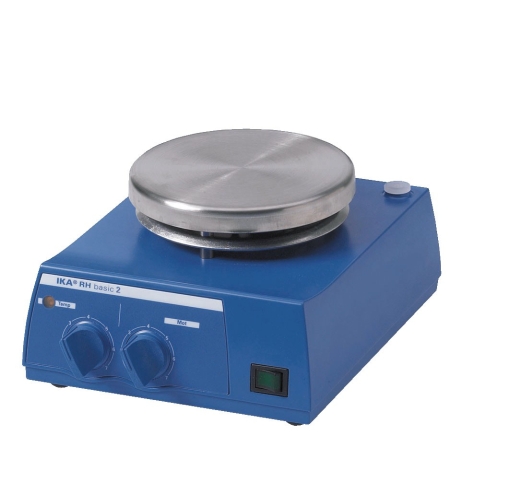

RH basic 2
Economic magnetic stirrer with stainless steel heating plate.
- Fixed safety circuit 400 °C
- Soft-start stirring motor
Stirring quantity (H2O): 10 l
Speed range: 100 – 2.000 rpm
Heat output: 400 W
Temperature range: RT – 320 °C
Technical Data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Motor rating output | 2 W |
| Speed control | scale 0 – 6 |
| Speed range | 100 – 2000 rpm |
| Heat output | 400 W |
| Heating temperature range | Room temp. – 320 °C |
| Heat control | scale 1 – 6 |
| Fixed safety circuit | 400 °C |
| Set-up plate material | stainless steel 1.4301 |
| Set-up plate dimensions | Ø 125 mm |
| Dimensions (W x H x D) | 168 x 105 x 220 mm |
| Weight | 2.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 220 – 240 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 415 W |
